High Speed Universal Casing In Machine soft hard cover automatic forming pressing

Name: High Speed Universal Casing In Machine soft hard cover automatic forming pressing
Brand: HXCP
Price: 166000 USD

China High Speed Universal Casing In Machine soft hard cover automatic forming pressing wholesale

Supply Ability : 10 sets/month

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : Stretch Film with Wooden Case

Dimensions : 5.9×4×2m(L×W×H)

MOQ : 1 set

Min Book Size : 120×140mm(L×W)

Delivery Time : 30 work days

Book Thickness : 4-50mm

Brand Name : HXCP

Power : 3PH/380V/50HZ/8Kw

Max Book Size : 450×315mm(L×W)

Place of Origin : China

Model Number : HX365

Price : USD 166000 per set

Weight : 4000kg

Fastest Speed : 2000books/h

Contact Now

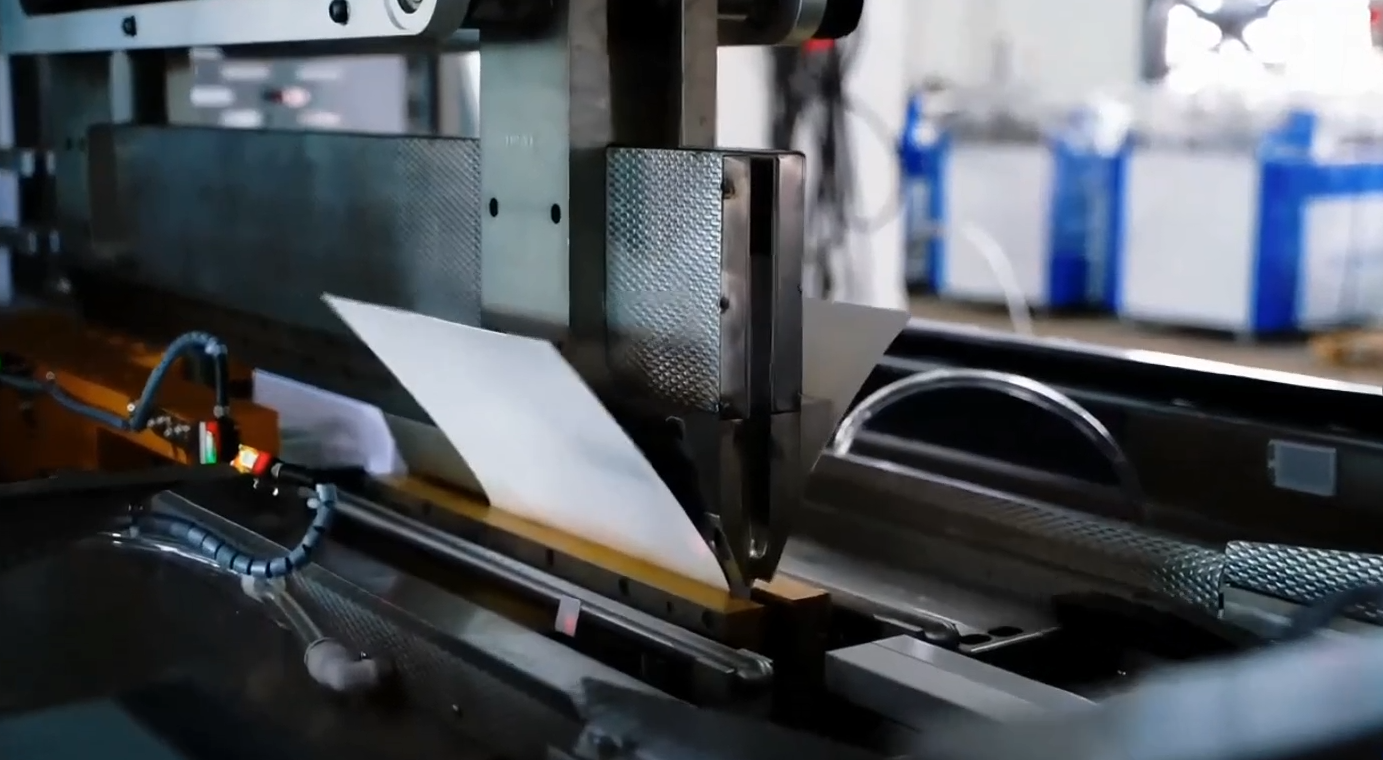

The HX365 Universal Cover Casing In Machine is a versatile, high-performance casing-in device tailor-made for modern bookbinding workshops, designed to streamline the core casing process of hardcover book blocks and board books. Breaking the limits of single-function casers on the market, this equipment delivers outstanding universal compatibility, capable of smooth processing for both soft covers and rigid hardcover cases in one unit, greatly expanding the production range of printing factories and reducing the need for multiple specialized machines.

High Speed Universal Casing In Machine soft hard cover automatic forming pressing

What sets the HX365 apart is its advanced precision partial gluing system, engineered to tackle complex cover styles that ordinary casing machines cannot handle stably. It perfectly adapts to special covers with irregular outlines or pre-punched holes, applying glue only on designated areas without overflow, missing coating or damage to decorative patterns and cut-out structures. Meanwhile, the machine supports flexible shaping of two mainstream book spine types—rounded spines and square spines—covering nearly all common hardcover and board book specifications in commercial printing and premium album manufacturing.

Built with fully automatic forming and integrated thorough pressing modules, the machine completes positioning, fitting, shaping and compact pressing in a continuous automated cycle. The powerful pressing structure eliminates loose fitting, wrinkled covers and uneven spines, delivering neat, tight and aesthetically consistent finished books with a premium professional finish. Even under long-term continuous high-speed running, the mechanical structure maintains stable pressure and precise positioning, effectively cutting down defective products caused by incomplete forming.

Max Book Size
450×315mm(L×W)

Min Book Size
120×140mm(L×W)

Book Thickness
4-50mm

Fastest Speed
2000books/h

Power
3PH/380V/50HZ/8Kw

Dimensions
5.9×4×2m(L×W×H)

Weight
4000kg

In terms of production efficiency and operability, the HX365 achieves a perfect balance of fast throughput and easy operation. It runs at high working speed to boost daily workshop output, while its humanized control logic lowers the operation threshold for workers. Operators can quickly switch between different cover materials, spine styles and special-shaped products without complicated mechanical adjustments, shortening order changeover time and improving overall production flexibility.

Combining cross-material cover compatibility, special-shaped cover gluing technology, dual spine processing capacity, automatic forming pressing and high-speed stable performance, the HX365 Universal Cover Casing In Machine serves as an all-in-one cost-effective casing-in workstation. It is an ideal upgrading equipment for manufacturers specializing in hardcover books, children board books, photo albums and customized printed publications, helping enterprises realize standardized, high-efficiency and high-quality casing-in production.
